通过单根 CATx 屏蔽电缆将 HDMI 或模拟视频、音频、双向 RS-232 和红外控制及以太网信号传输至 100 m (330 ) 远的距离 支持分辨率高达 4K 的计算机和视频信号 符合 HDCP 2 2 标准 支持远程供电
特性
通过单根 CATx 屏蔽电缆将 HDMI 或模拟视频、音频、双向 RS-232 和红外控制及以太网信号传输至 100 m (330') 远的距离
支持分辨率高达 4K 的计算机和视频信号
符合 HDCP 2.2 标准
支持远程供电
用于视音频设备控制的双向 RS-232 和红外插入
强烈建议使用 Extron XTP DTP 24 屏蔽双绞线电缆，以达到更佳的性能表现

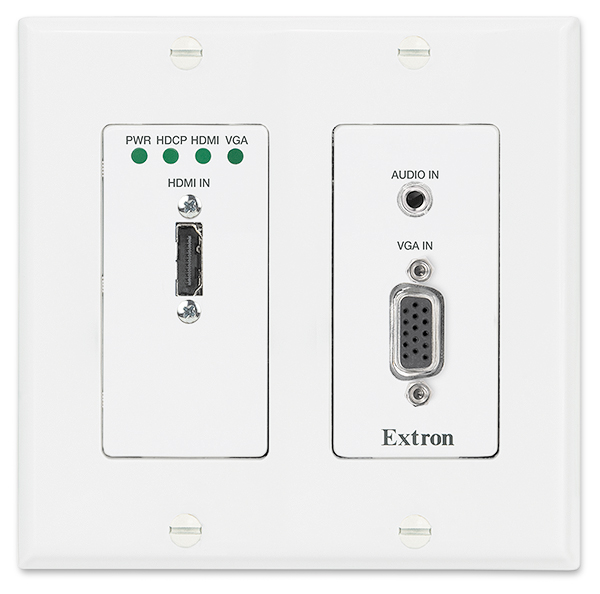

1 路 HDMI 和 1 路 VGA 输入
各路输入之间的自动切换
支持 HDMI 参数标准，包括高达 10.2 Gbps 的数据速率、高达 12 位的色深、3D 和高清无损的音频格式
EDID 管理器 (EDID Minder®) 自动地管理已连接设备之间的 EDID 通信
密钥管理器 (Key Mindersup>®) 持续地验证 HDCP 标准，用于快速、可靠的切换
HDCP 可视确认 — 当处理 HDCP 加密的内容时，如果视频输出连接至一个不符合 HDCP 标准的显示设备，图像解析度转换器即会输出一个全屏的绿色信号，可以从视觉上立刻确认被保护内容无法显示在此显示设备上
以太网扩展 - 仅限 XTP T UWP 202 4K 型号
可选择的模拟立体声音频输入嵌入
音频输入增益及衰减
RS-232 控制
兼容 XTP 产品
随附外置 Extron Everlast™ 电源，产品编号 #70-1174-01 — 该通用型电源具有经验证的高可靠性和低功耗，能够降低运行成本
Extron Everlast 电源可享受 7 年部件及人工保修
| Video | |
|---|---|
| | Unity |
| | |
| | Up to 2560x1600 @ 60 Hz*, or 4K (4096x2160) @ 30 Hz, UHD (3840x2160) @ 30 Hz, 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling * reduced blanking |
| | Up to 1920x1200* or 1080p (HDTV) * reduced blanking |
| | Single-link HDMI (or DVI-D or DisplayPort) |
| | 10.2 Gbps (3.4 Gbps per color) |
| | 300 MHz (600 MHz for 4K rates with 4:2:0 chroma subsampling) |
| | RGB and YCbCr digital video |
| | DisplayPort 1.1, DVI 1.0, HDMI 1.4; HDCP 2.2 |
| Video input | |
| | 1 analog RGBHV 1 single link HDMI (or DVI-D or DisplayPort) |
| | 1 female 15-pin HD 1 female HDMI type A |
| | 0.7 Vp-p for RGB |
| | 0.3 V to 1.45 V p-p |
| | 75 ohms |
| | 30 kHz to 100 kHz |
| | 24 Hz to 120 Hz |
| Shielded twisted pair interconnection | |
| | 1 female RJ-45 per unit |
| | TIA/EIA T568B |
| | 330' (100 m) using shielded twisted pair or XTP DTP 24 cable |
| | Solid conductor, 24 AWG or better |
| | 400 MHz bandwidth, STP (Shielded Twisted Pair) |
| NOTE Extron XTP DTP 24 shielded twisted pair cable is stongly recommended for optimal performance. | |
| Audio | |
| | |
| | Adjustable, -18 dB to +24 dB |
| | Unbalanced output: 0 dB; balanced output +6 dB |
| | 20 Hz to 20 kHz, ±0.05 dB |
| | 0.01% @ 1 kHz at nominal level |
| | >90 dB, at maximum output, balanced (unweighted) |
| | ≤-80 dB @ 1 kHz, fully loaded |
| | >80 dB @ 1 kHz |
| | 32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz |
| | 16, 20, 24 bit |
| Audio input | |
| | 1 analog stereo, unbalanced or 1 digital audio, de-embedded from HDMI |
| | 1 female 3.5 mm mini stereo jack 1 female HDMI type A (shared with video input) |
| | LPCM up to 7.1/24-bit/192 kHz, Dolby Atmos®, Dolby® TrueHD, Dolby Digital Plus™, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, DTS-HD Master Audio™, DTS-HD, DTS-ES Discrete 6.1, DTS-ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2 Channel, analog stereo |
| | >10k ohms unbalanced, DC coupled |
| | -10 dBV (316 mVrms) unbalanced |
| | +7 dBv unbalanced |
| NOTE 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu | |
| Communications — transmitter | |
| | 1 bidirectional RS-232: 1 rear panel 3.5 mm captive screw connector, 3 pole |
| | 9600 (default) to 115200 baud, 8 data bits, 1 stop bit, no parity |
| | 1 = Tx, 2 = Rx, 3 = GND |
| | 1 front panel female mini USB B |
| | USB 2.0, low speed |
| | Extron control/configuration program for Windows® Extron Simple Instruction Set (SIS™) |
| Communications — external device (pass-through, unidirectional or bidirectional) | |
| | 1 set of proprietary signals on a female RJ-45 jack |
| | RS-232 (±5 V) via (1) 3.5 mm, 5 pole captive screw connector (uses 3 poles) (connector is shared with IR control port) |
| | Up to 115200 baud |
| | Data bits = 5-8 Stop bits = 1 or 2 Parity = odd, even, none Flow control = XON, XOFF, none |
| | 1 = Tx, 2 = Rx, 3 = GND |
| | (1) 3.5 mm, captive screw connector, 5 pole (connector is shared with RS-232 control port) TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 40 kHz |
| | 3 = GND, 4 = IR Tx, 5 = IR Rx |
| | 1 female RJ-45 connector |
| | 10/100Base-T, half/full duplex with autodetect |
| NOTE Ethernet pass-through port is optional and not available for No-LAN models. | |
| General | |
| | External Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 1.5 A, 18 watts |
| | |
| | TBD |
| | TBD |
| NOTE The XTP transmitter can be powered either locally by an external power supply or remotely using an optional power injector or XTP CrossPoint matrix switcher. | |
| | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +104 °F (0 to +40 °C) / 10% to 90%, noncondensing |
| | Convection, no vents |
| | |
| | TBD |
| | TBD |
| Mounting | |
| | Wall or furniture mount in a decorator-style opening. |
| | Metal |
| | |
| | Two (2.6" H* x 1.3" W x 0.3" D [6.6 cm H* x 3.3 cm W x 0.8 cm D]) |
| | 2.8" H* x 3.7" W x 1.9" D (7.1 cm H* x 9.4 cm W x 4.8 cm D) (Depth excludes connectors. Fits some 2-gang boxes.) *Height is 4.1" (10.4 cm) including mounting tabs. |
| | 0.6 lbs (0.3 kg) |
| | ISTA 1A in carton (International Safe Transit Association) |
| | CE, c-UL, UL, C-tick, FCC Class A, ICES, VCCI Complies with the appropriate requirements of RoHS and WEEE. |
| | 3 years parts and labor |
| | 7 years parts and labor |
| NOTE All nominal levels are at ±10%. | |
| NOTE Specifications are subject to change without notice. | |
| (4452-D4) | |
